Description

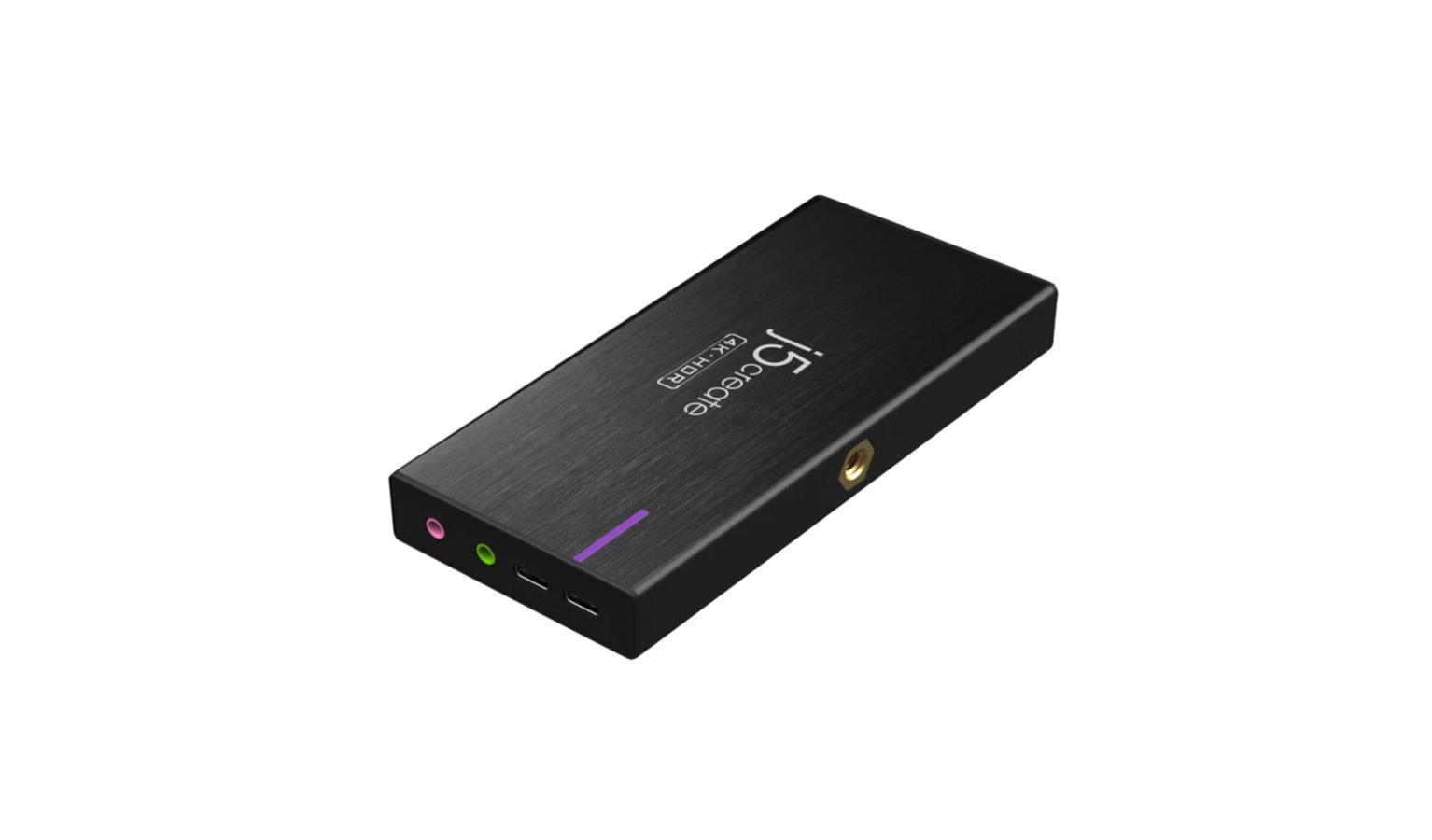

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.
Key Features
- Supports 4K capture and 4K60 HDR pass-through - View your gameplay at high resolutions with the 4K capture and 4K HDR pass-through
- Perfect for live streaming and recording gameplay - Compatible with OBS™, XSplit®, CameraFi™, QuickTime®, and other video streaming software. Suitable for gaming consoles such as PlayStation™ 4/5, Xbox™ Series X/S, Xbox™ One X / S and Switch™
- Quality Audio Connectivity - The JVA14 features a flexible audio connection via HDMI™ or analog 3.5 mm ports so you can record audio directly from game consoles, computers, or output to speakers/mixers
- Low-latency streaming with a USB™ 3.2 connection - High-speed USB™ connection allows for quick data transfer and high quality streaming
- 60W Power Delivery 3.0 - Allows phones and laptops with USB-C® power delivery to stay charged while being used as a streaming device
- Easy DSLR attachment with 2 cold shoes embedded
- LED indicator to keep track of USB™ speeds and compression rates
- No driver installation required
| Host Connector | 1 - USB-C® 3.2 Female |
|---|
| Video Input | 1 - HDMI™ Female |
| Video Output | 1 - HDMI™ Female |
| Audio Input | 1 - 3.5mm AUX |
| Audio Output | 1 - 3.5mm AUX |
| Power Source | Bus-powered |
| Ports | 1 - USB-C® 3.2 Gen 1 1 - HDMI™ Input 1 - HDMI™ Output 1 - Audio Out (3.5 mm) 1 - Mic In (3.5 mm) |
| Maximum Capture Resolution | 3840 x 2160 |
| Maximum Passthrough Resolution | 3840 x 2160 |
| Maximum Capture Refresh Rate | 4K30 FPS, 2K60 FPS, 1080p120 FPS |
| Maximum Passthrough Refresh Rate | 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Microphone | Stereo microphone supported 24-bit sigma-delta ADC |
| Headset | 2.1 Stereo |
| Format | USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0 USB™ 2.0: YUV4:2:0 |
| Maximum Capture Capability | USB™ 3.0: 3840 x 2160 @ 30 USB™ 2.0: 1280 x 720 @ 30 |
| HDR Supported | Yes |
| Power Delivery | 60W via USB-C® |
| Power Consumption | ≤900 mA |
* Images are for illustration purposes only
